Supported Devices
E-MetroTel has introduced support for the following Toshiba digital phone models (other models may be supported in the future).
| Model | Device Type | Description |
|---|---|---|
| DKT3010-SD | DKT3010SD | 2-line LCD display, 10-buttons 3000 series digital phone. |
| DKT3020-SD | DKT3020SD | 2-line LCD display, 20-buttons with LED 3000 Series digital phone. |
| DKT3210-SD | DKT3210SD | 2-line LCD display, 10-buttons with LED 3200 series digital phone. |
| DKT3220-SD | DKT3220SD | 2-line LCD display, 20-buttons 3200 series digital phone. |
| DP5008 | DP5008 | Non-display, single line, 8-button 5000 series digital phone. |
| DP5018-S | DP5018S | Non-display, multi-line, 10-button 5000 series digital phone. |
| DP5022-SD | DP5022SD | 4-line LCD display, multi-line, 10-button 5000 series digital phone. |
| DP5032-SD | DP5032SD | 4-line LCD display, multi-line, 20-button 5000 series digital phone. |
| DP5112-SD | DP5112SD | 4-line back-lit LCD display, 10-button 5000 series digital phone. |
DP5130-SDL | DP5130SDL | 9-line large back-lit LCD display, 10-button 5000 series digital phone. |
| DP5132-SD | DP5132SD | 4-line back-lit LCD display, 20-button 5000 series digital phone. |
Configuring Toshiba Digital Phones
Step 1
Configure any of the DSM16 modules that will be used to connect the Toshiba digital phones to the UCX with the appropriate Toshiba settings. The Digital Set Mode should be set to Toshiba.
Refer to DSM16- Gateway – Device Configuration for additional details.
Step 2

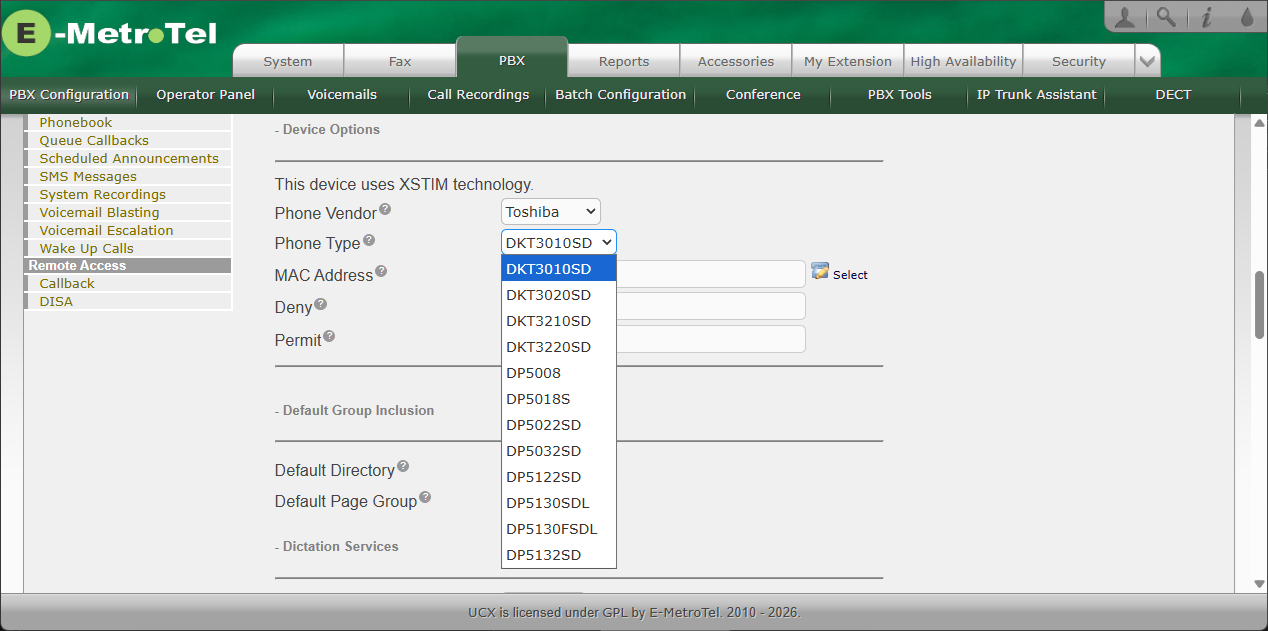

To create a single extension for an Toshiba Digital Phone, refer to Basic – Adding XSTIM Extension for details. For Toshiba phones, select Toshiba as the Phone Vendor and then select the specific model of phone from the Phone Type drop-down.
Key Mappings

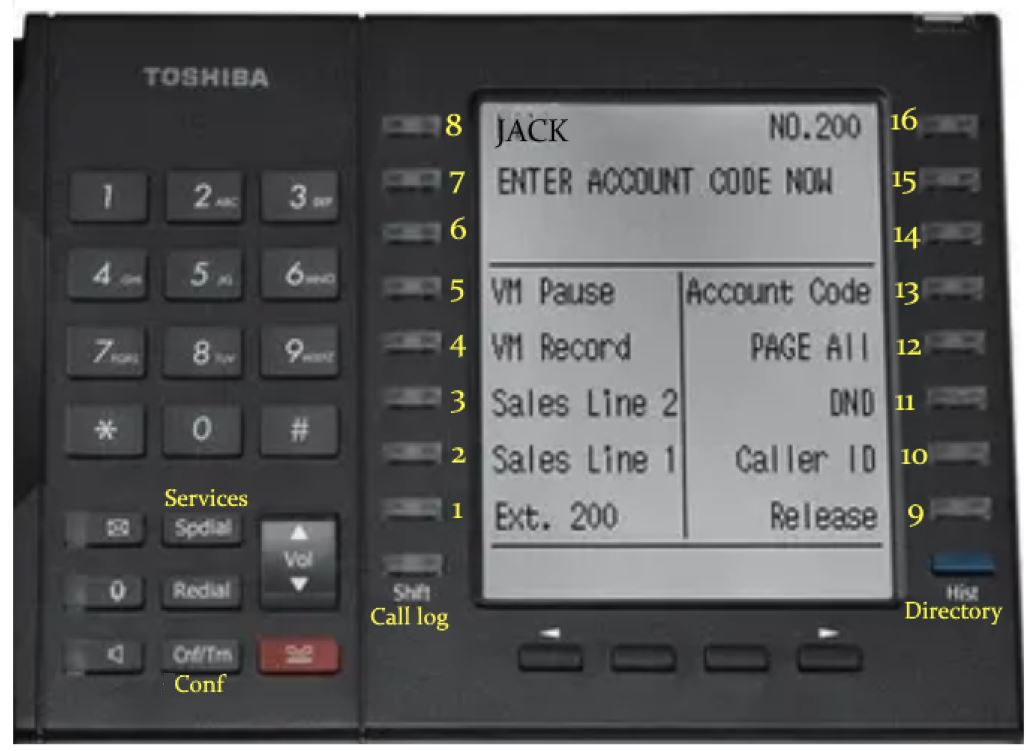

The speed dial (Spdial) key on DKT3000 and DP5000 series phones is mapped to the Services key (Features menu).
The conference/transfer (Cnf/Trn) key on DKT3000 and DP5000 series phones is mapped to the Conference feature.
Limitations
- The Mute operation does not work on DKT3000 series phones in handset mode. It works only in handsfree mode.
- On the DP5130-FSDL/SDL phone models, only 10 programmable keys with key labels are supported.
Upcoming Features
- Distinct ring tones, more tones to be made available.
- Volume level settings for ring tones.
- Display contrast control settings.
- Display backlight control settings.
